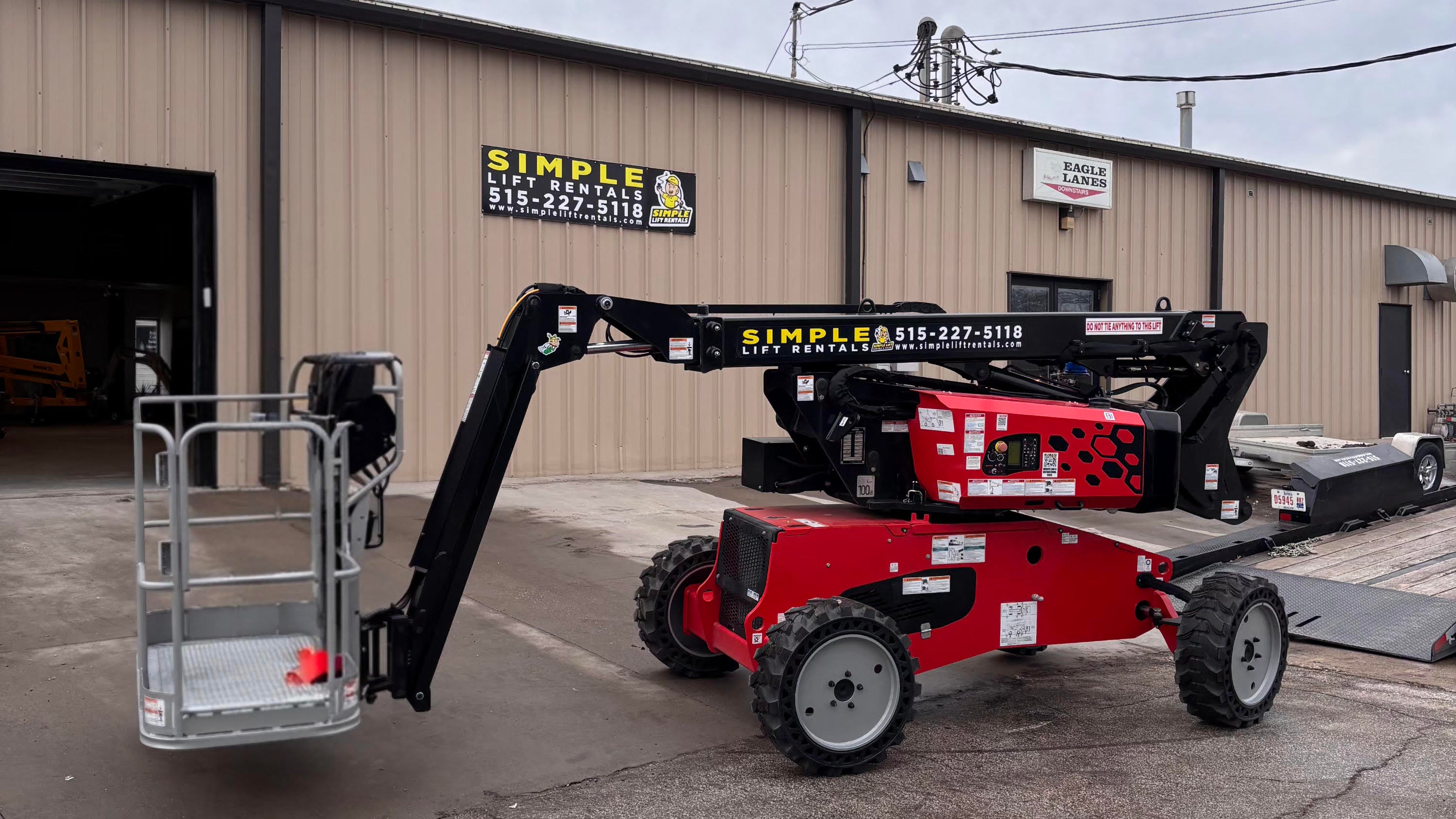

TOWABLE BOOM LIFTS

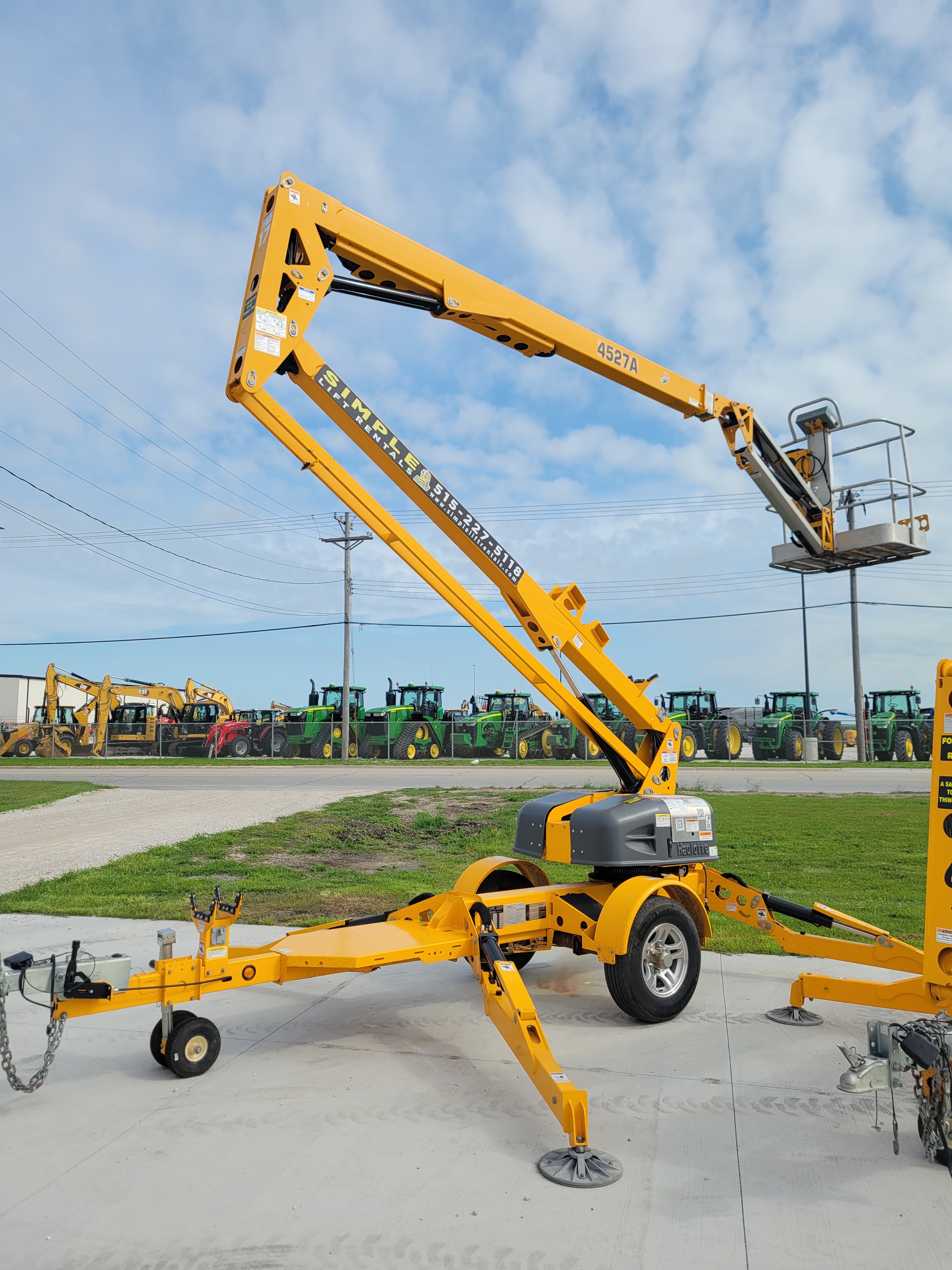

  • TOWABLE 45' BOOM LIFT

    Working Height: 51'
    Platform Height: 45'
    Horizontal Outreach: 27'
    Up & Over Clearance: 20'9"
    Lift Capacity: 500 lbs
    Length (stowed): 20' 8"
    Hitch Size: 2" ball
    Power Source: 4x6 V 245 amp-hr

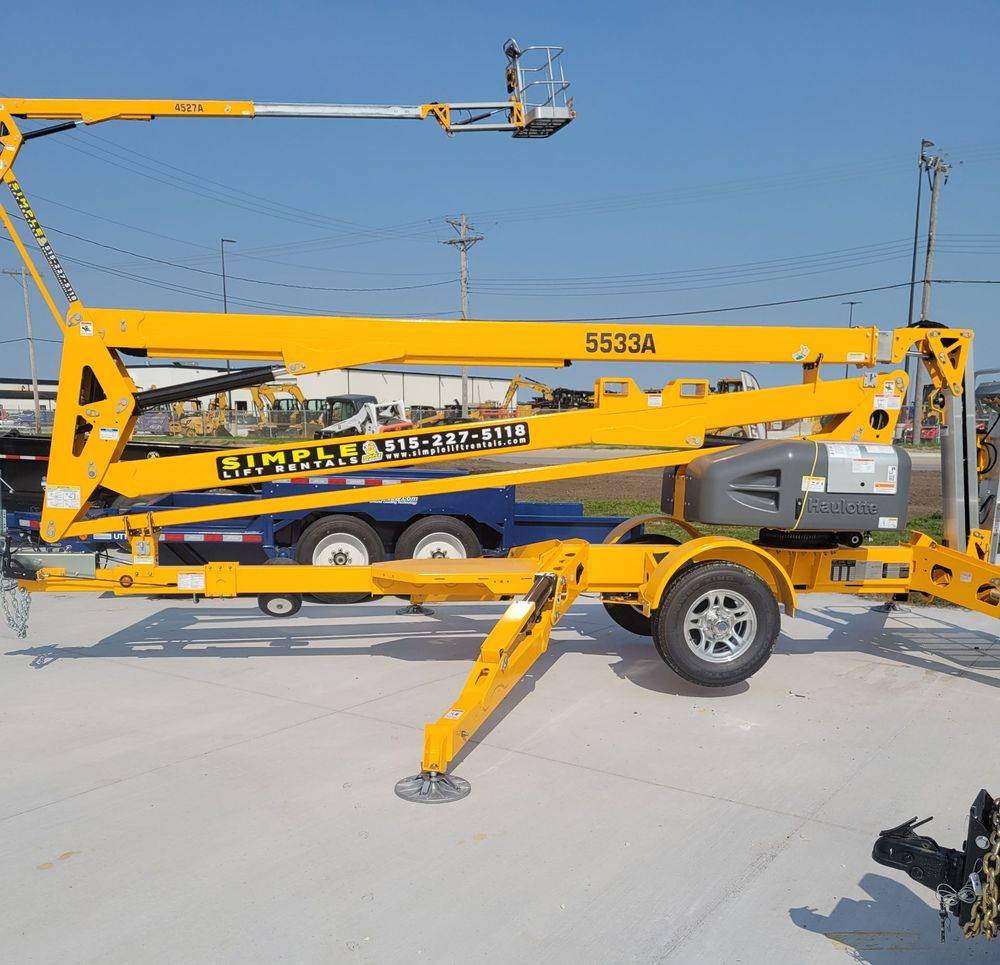

  • TOWABLE 55' BOOM LIFT

    Working Height: 61'
    Platform Height: 55'
    Horizontal Outreach: 33' 5"
    Up & Over Clearance: 23' 1"
    Lift Capacity: 500 lbs
    Length (stowed): 23' 8"
    Hitch Size: 2" ball
    Power Source: 4x6 V 245 amp-hr

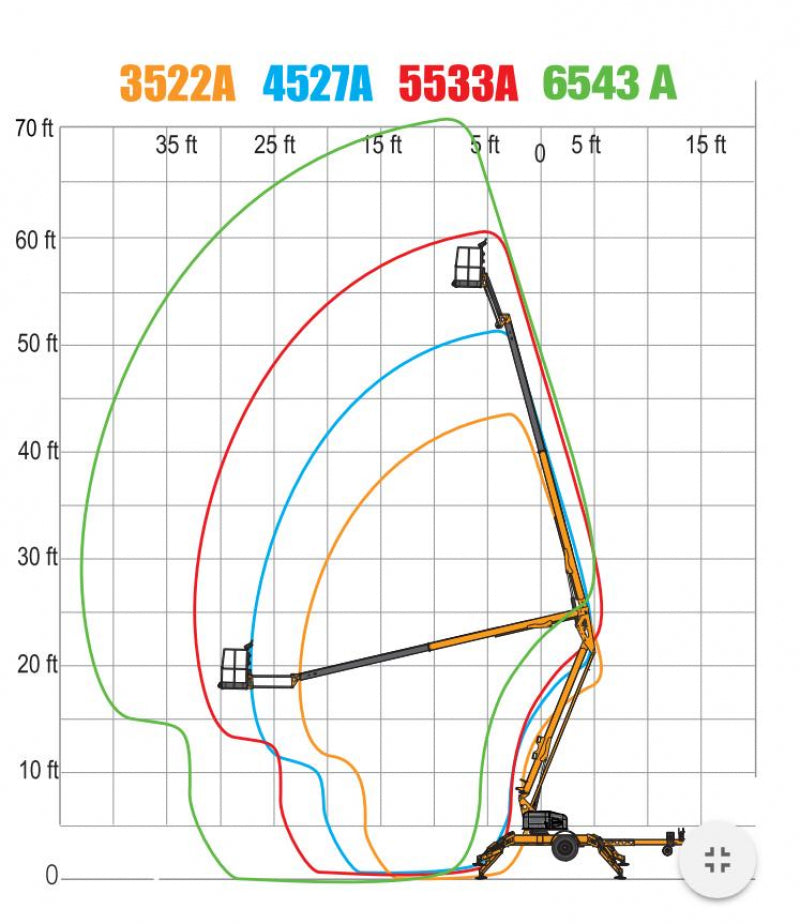

  • OUTREACH DIAGRAM FOR TOWABLE LIFTS

SCISSOR LIFTS

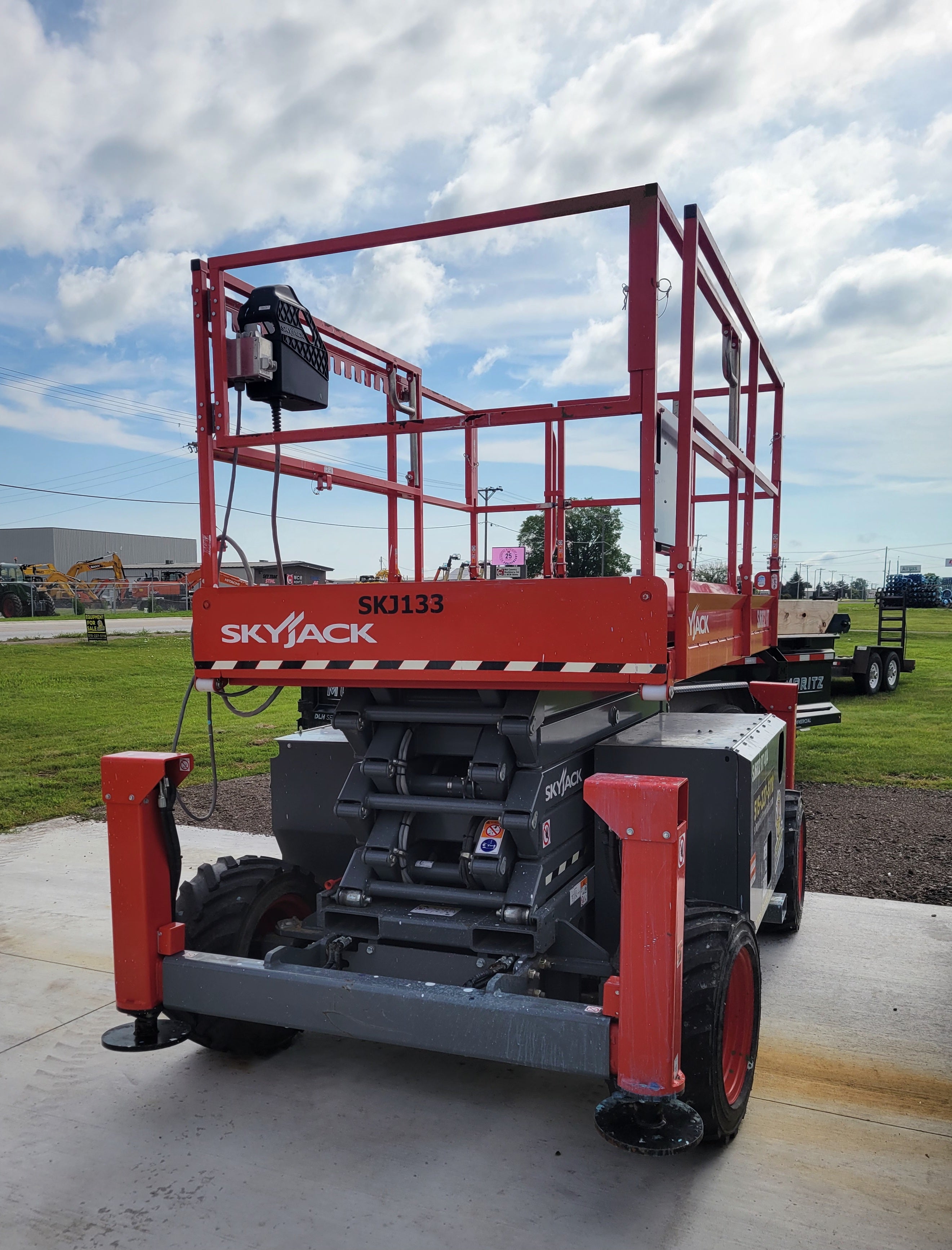

  • 32' RT SCISSOR LIFT

    Working Height: 38'
    Raised Platform Height: 32'
    Overall Width: 5.8'
    Platform Width: 4.6'
    Platform Length: 8'
    Extension Deck: 5'
    Ground Clearance: 8"
    Capacity (Overall): 1,000 lbs
    Power Source: Diesel Motor
    Overall Stowed Height: 8' 3"

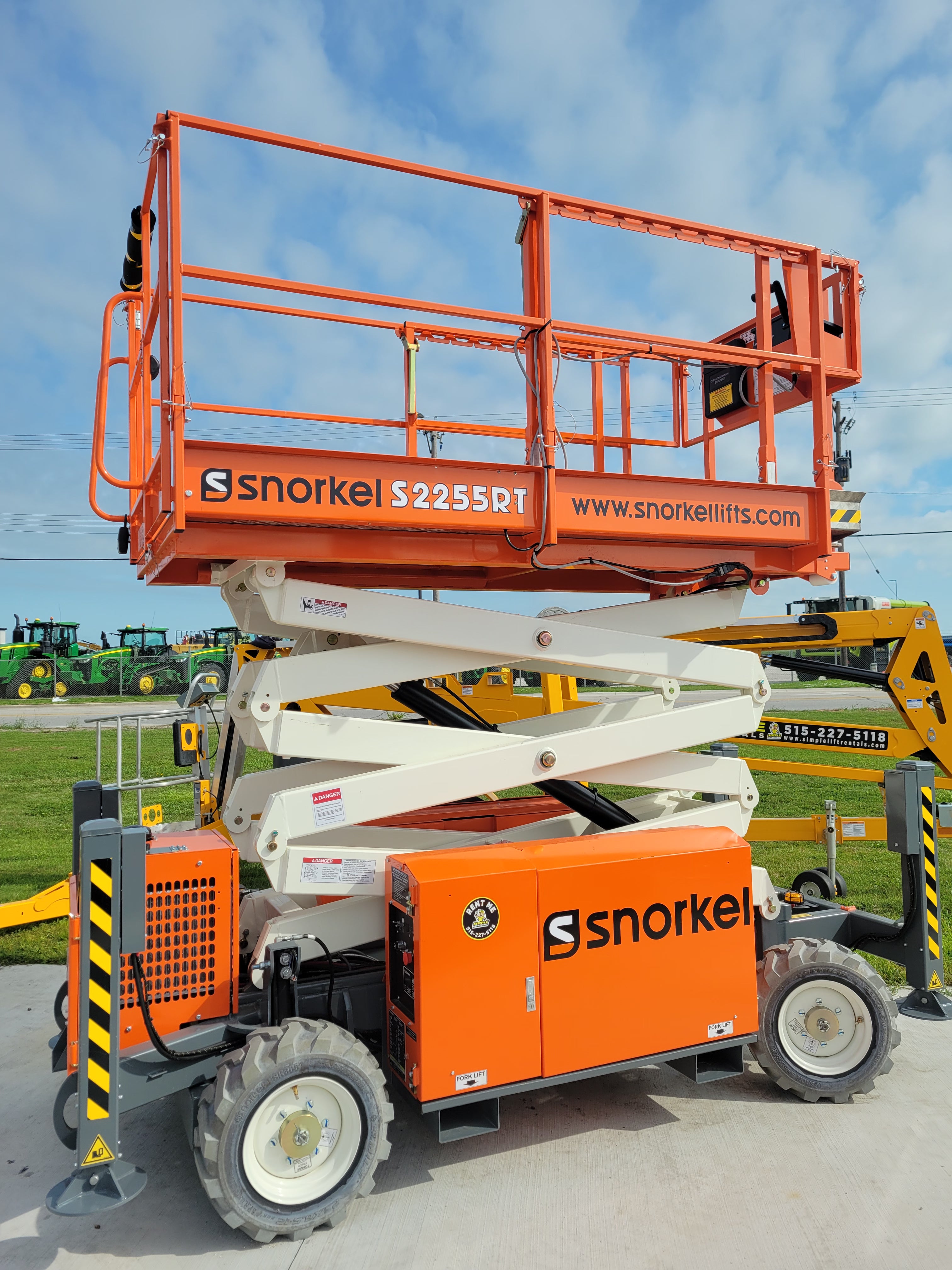

  • 22' RT SCISSOR LIFT

    Working Height: 27'
    Raised Platform Height: 22'
    Overall Width: 4' 8"
    Platform Width: 4' 7"
    Platform Length: 8' 9"
    Extension Deck: 4'
    Ground Clearance: 10.2"
    Capacity (Overall): 926 lbs
    Power Source: Diesel Moter
    Overall Stowed Height: 7' 8"

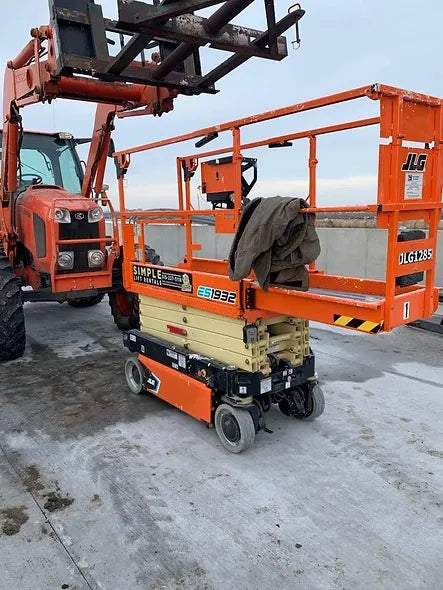

  • 19' INDOOR SCISSOR LIFT

    Working Height: 25'
    Raised Platform Height: 19'
    Overall Width: 2.7'
    Platform Width: 2.3'
    Platform Length: 5'
    Extension Deck: 3'
    Ground Clearance: 2.7"
    Capacity (Overall): 550 lbs
    Power Source: 24V DC Battery
    Overall Stowed Height: 6' 6.75"

Skid Loader

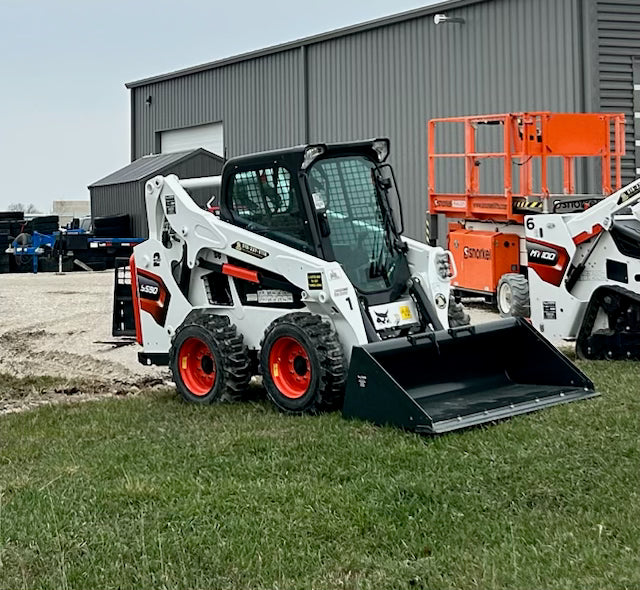

  • Bobcat S590

    Horsepower 68hp

    Rated Operating Capacity (ISO)2,100lb

    Operating Weight 6765lb

    Auxiliary Std Flow17.1gal/min

    Auxiliary High Flow26.7gal/min
Button label

Mini Excavator's

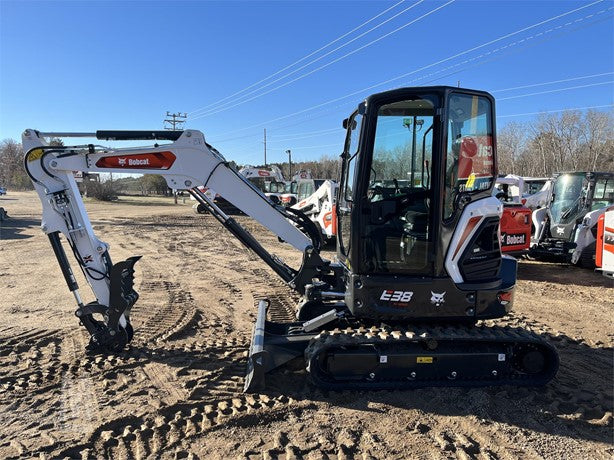

  • E38 Mini Excavator

    Operational Bucket Digging Force 7,284 lbf.

    Fuel Tank 13.7 gal.

    Operating Weight 7,893 lb.

    Weight Class 3.6 t.

    Travel Speed High 2.9 mph.

    Travel Speed Low 1.6 mph.

    Arm Digging Force 4,690 lbf.

    Rated Lift Capacity 3318 lb.

    Lift Radius 118 in.

    Boom Swing Left 75°.

    Boom Swing Right 55°.

    Maximum Dig 133 in.

    Max Dump Height 136.8 in.

    Maximum Reach At Ground Level 204 in

  • E20 Mini Excavator

    Operating Weight 4,306lb.

    Weight Class2 tTravel Speed - High 2.6mph Travel Speed Low 1.3mph.

    Arm Digging Force 2,086lbf.

    Bucket Digging Force 4,684lbf.

    Rated Lift Capacity 1098lb Lift Radius 118in.

    Boom Swing - Left80° Boom Swing - Right 60° .

    Maximum Dig Depth 101in Max Dump Height 106in.

    Maximum Reach at Ground Level 167.9in
Button label

MINI TRACK LOADERS

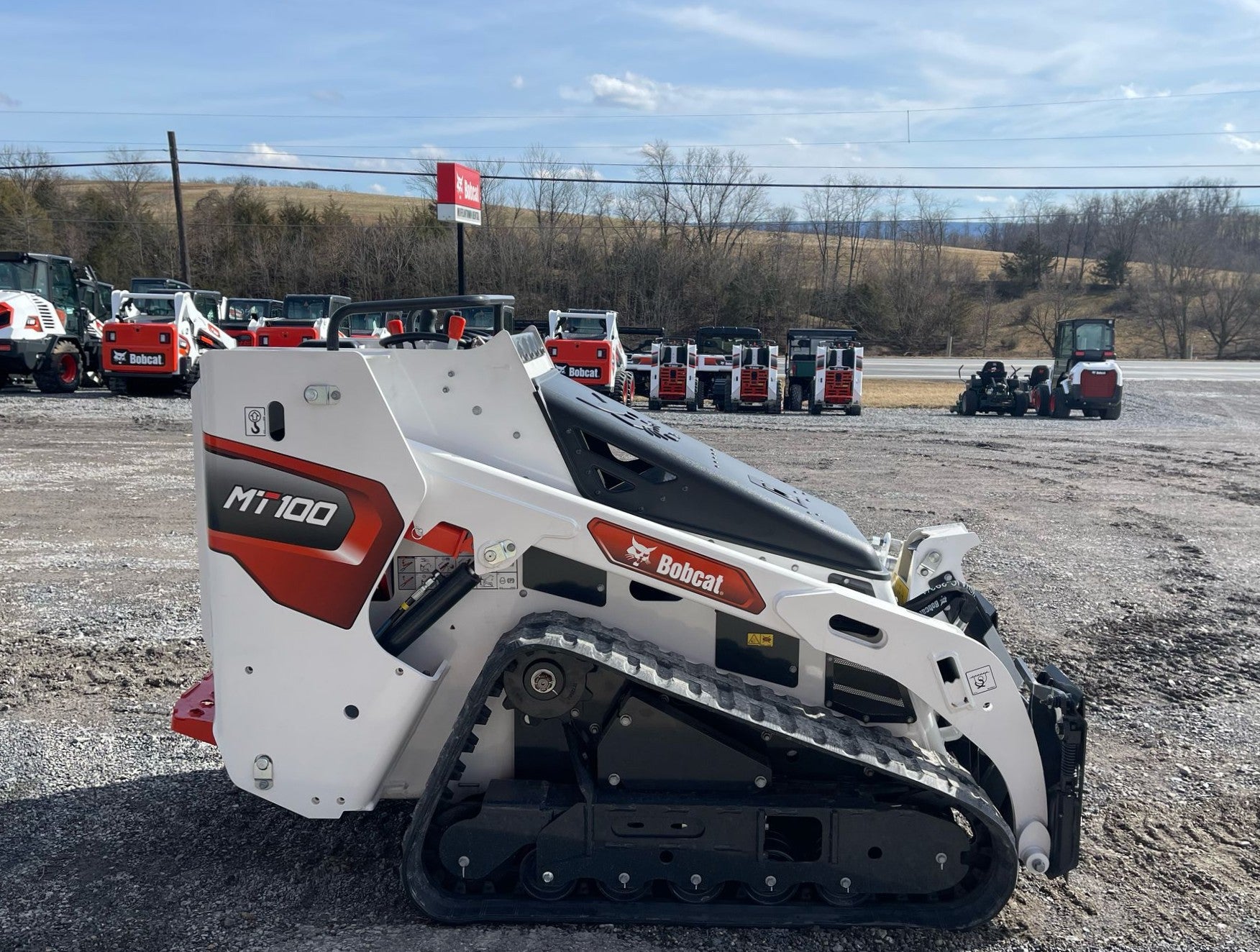

  • MT100 Mini Skid loader

    Rated Operating Capacity (ISO) 1,000lb 1,300lb.

    Tipping Load 2898lb.

    Operating Weight 3390lb

    Ground Pressure (Rubber) 5.25psi

    Travel Speed 4.1mph

    Travel Speed - Reverse 2.9mph

    Length 106.2in.

    Width 35.6in .

    Height 54.6in Height to Bucket Hinge Pin 80.9in.

    Length of track on ground 41.4in

    Reach @ Maximum Height 18.6in

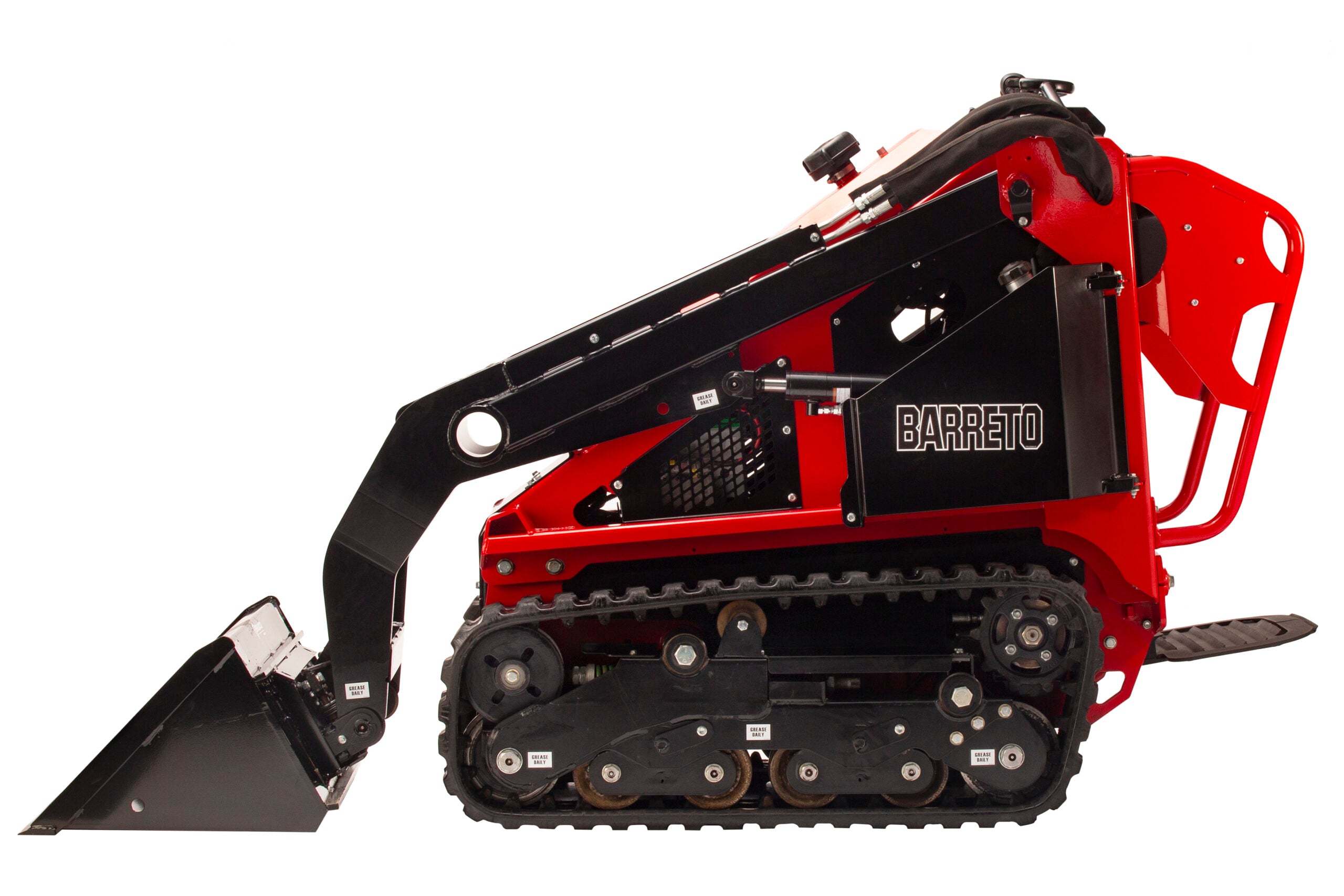

  • 825TKL MINI TRACK LOADER

    Weight (no attachment): 2,950 lbs
    Operating Height, max: 105.75"
    Overall Length: 106.5"
    Ground Clearance: 7.25"
    Tipping Capacity: 2,325 lbs
    Rated operating capacity 35% of tipping capacity: 800 lbs
    Engine: Diesel

Genie Telehandler

  • Genie Compact GTH-5519

    Max Lift Capacity5,500 lb| 2,495 kgMax Lift Height18 ft 10 in| 5.74 mMax Forward Reach11 ft 3 in| 3.43 mCapacity at Max Height4,400 lb| 1,996 kgCapacity at Max Reach1,900 lb| 862 kg

  • Outreach Diagram

STUMP GRINDERS & TRENCHERS

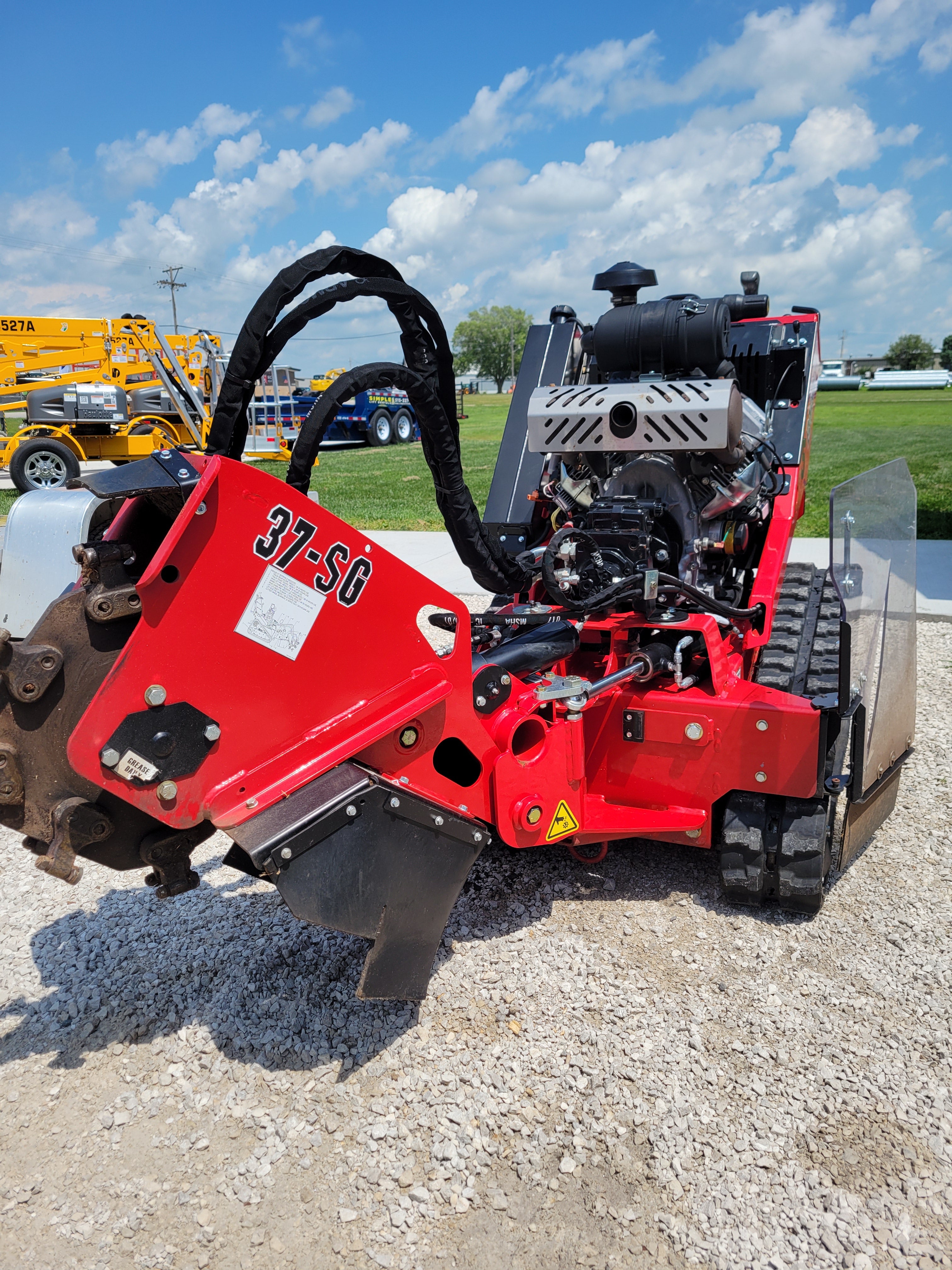

  • BARRETO 37SGB STUMP GRINDER

    Weight: 1,950 lbs
    Height: 49.5"
    Length (head to side): 79"
    Length (head straight): 98"
    Width: 35.5"
    Track Width: 7.1"
    Ground Contact: 470 sq in
    Fuel: Gasoline
    Engine: 37hp V-Twin

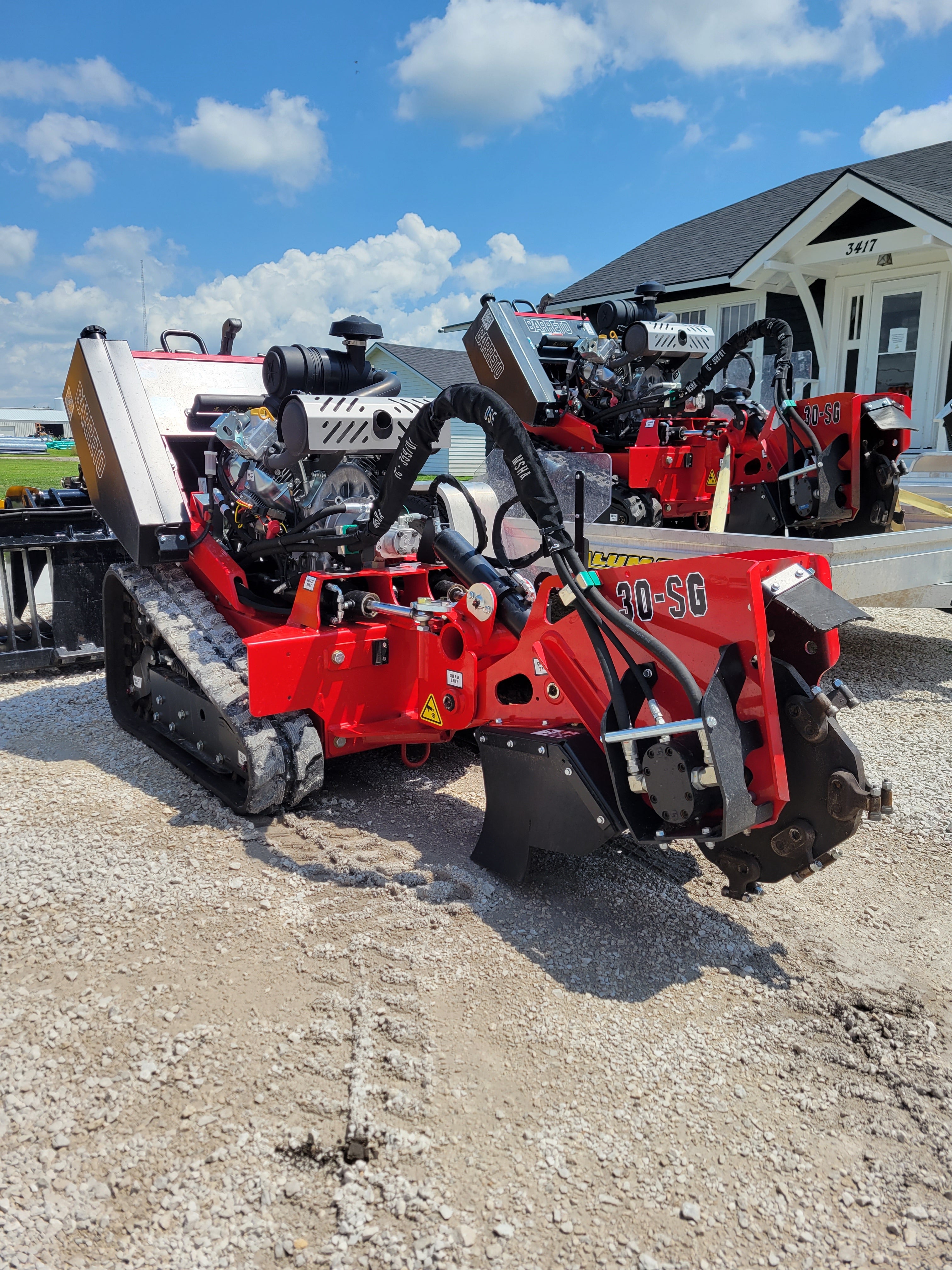

  • BARRETO 30SGB STUMP GRINDER

    Weight: 1,700 lbs
    Height: 49.5"
    Length (head to side): 79"
    Length (head straight): 98"
    Width: 35.5"
    Track Width: 7.1"
    Ground Contact: 470 sq in
    Fuel: Gasoline
    Engine: 31hp V-Twin

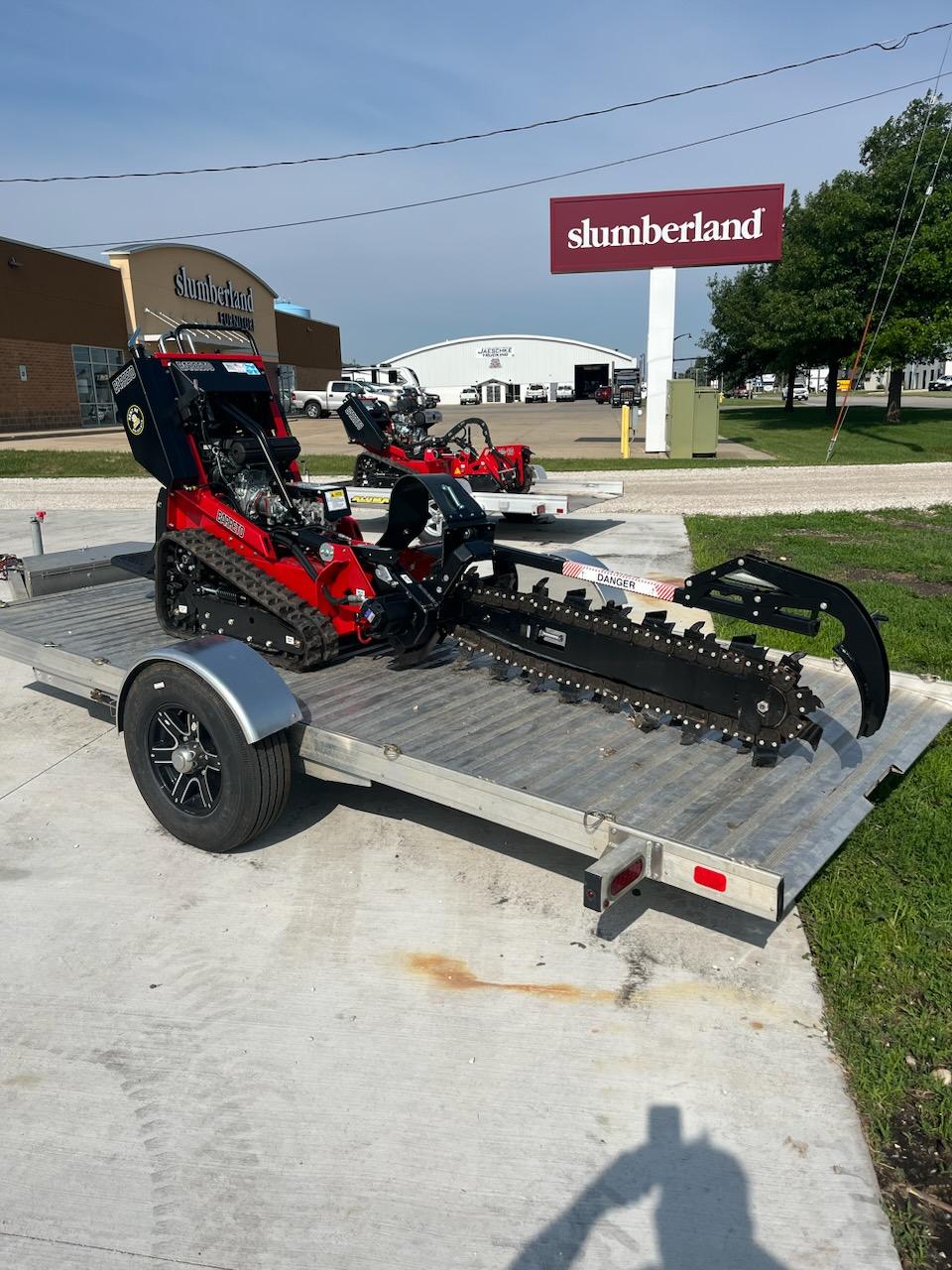

  • BARRETO RTK23 TRENCHER

    Weight: 1,690 lbs
    Height: 56.2"
    Length: 108"
    Width: 35.5"
    Track Width: 7.1"
    Ground Contact: 470 sq in
    Fuel: Gasoline
    Engine: 23HP V-Twin
    Upgrade: 6" wide chain trenching up to 48' deep.

Air-tow Trailers

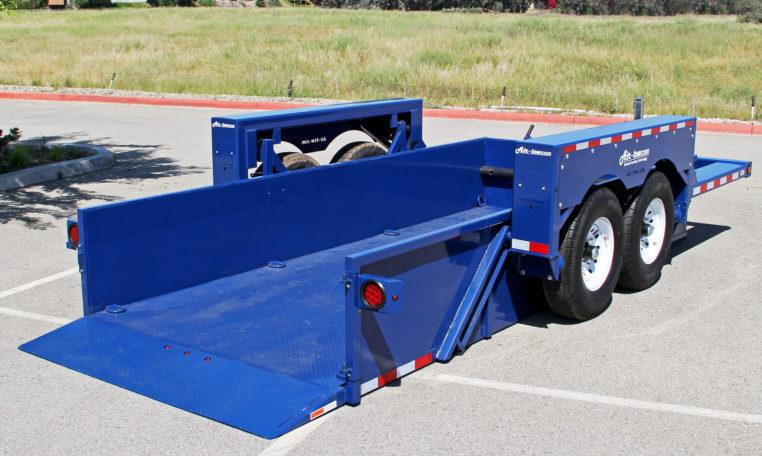

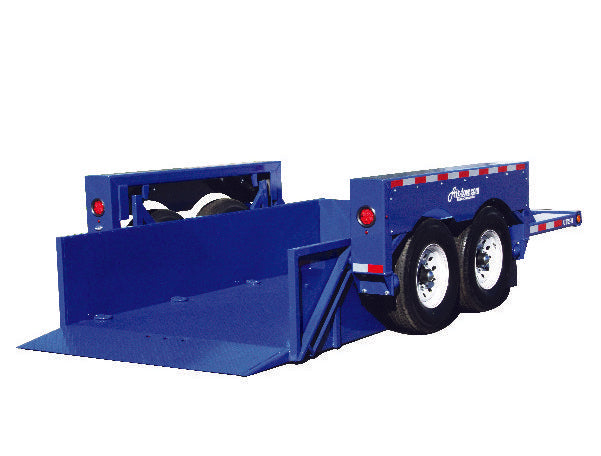

  • UT14-10 AIR TOW TRAILER

    Capacity: 10,000 lbs
    Deck Width: 6' 3"
    Deck Length (inc. 18" ramp): 14'
    Overall Width: 8.5'
    Brakes: Electric
    Lift Mechanism: Hydraulic
    Coupler: 2 5/16" Ball

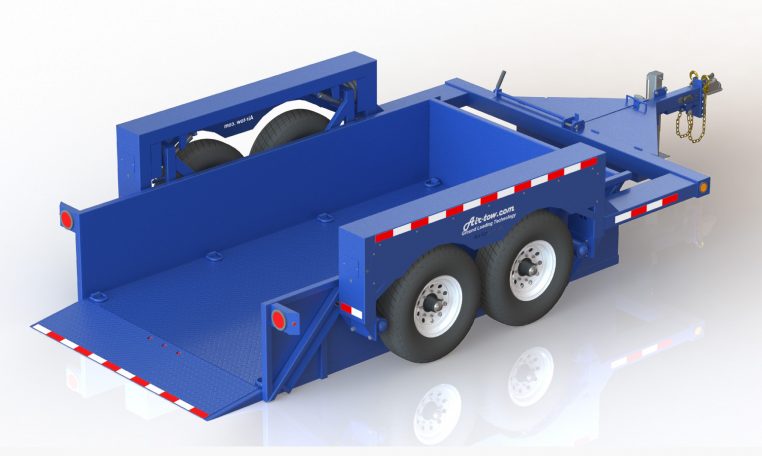

  • UT12-10 Air Tow Trailer

    Capacity: 10,000 lbs.
    Deck Width: 6’3″ (75″)
    Deck Length: (inc. 18″ ramp) 12′
    Overall: Width 102″
    Brakes: Electric
    Mechanism: Hydraulic
    Coupler: 2 5/16″ Ball

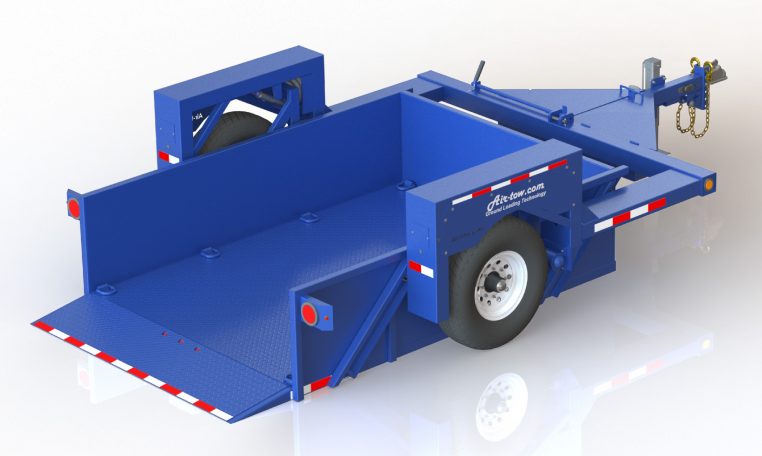

  • US10-55 Air Tow Trailer

    Capacity: 5,500 lbs.
    Deck Width: 6’3″ (75″)
    Deck Length: (inc. 18″ ramp) 10′
    Overall Width: 102″
    Brakes: Electric
    Mechanism: Hydraulic
    Coupler: 2 5/16″ Ball

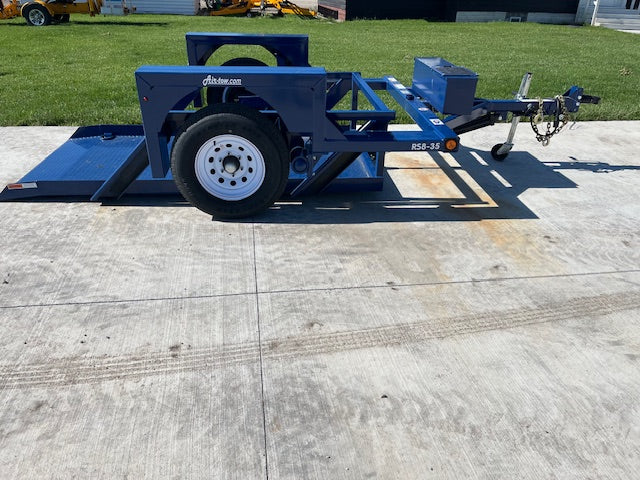

  • S8-35 Air Tow Trailer

    Capacity: 3,500 lbs.
    Deck Width: 4’4″ (52″)
    Deck Length: 8’6″
    Overall Width: 73″
    Brakes (electric-std.): Electric
    Coupler: 2″ Ball

  • UT16-14 Air Tow Trailer

    Capacity: 14,000 lbs.
    Deck Width: 6’3″ (75″)
    Deck Length: 16′
    Overall Width: 102″
    Brakes (electric-std.): Electric
    Coupler: 2 5/16″ Ball

TRAILERS

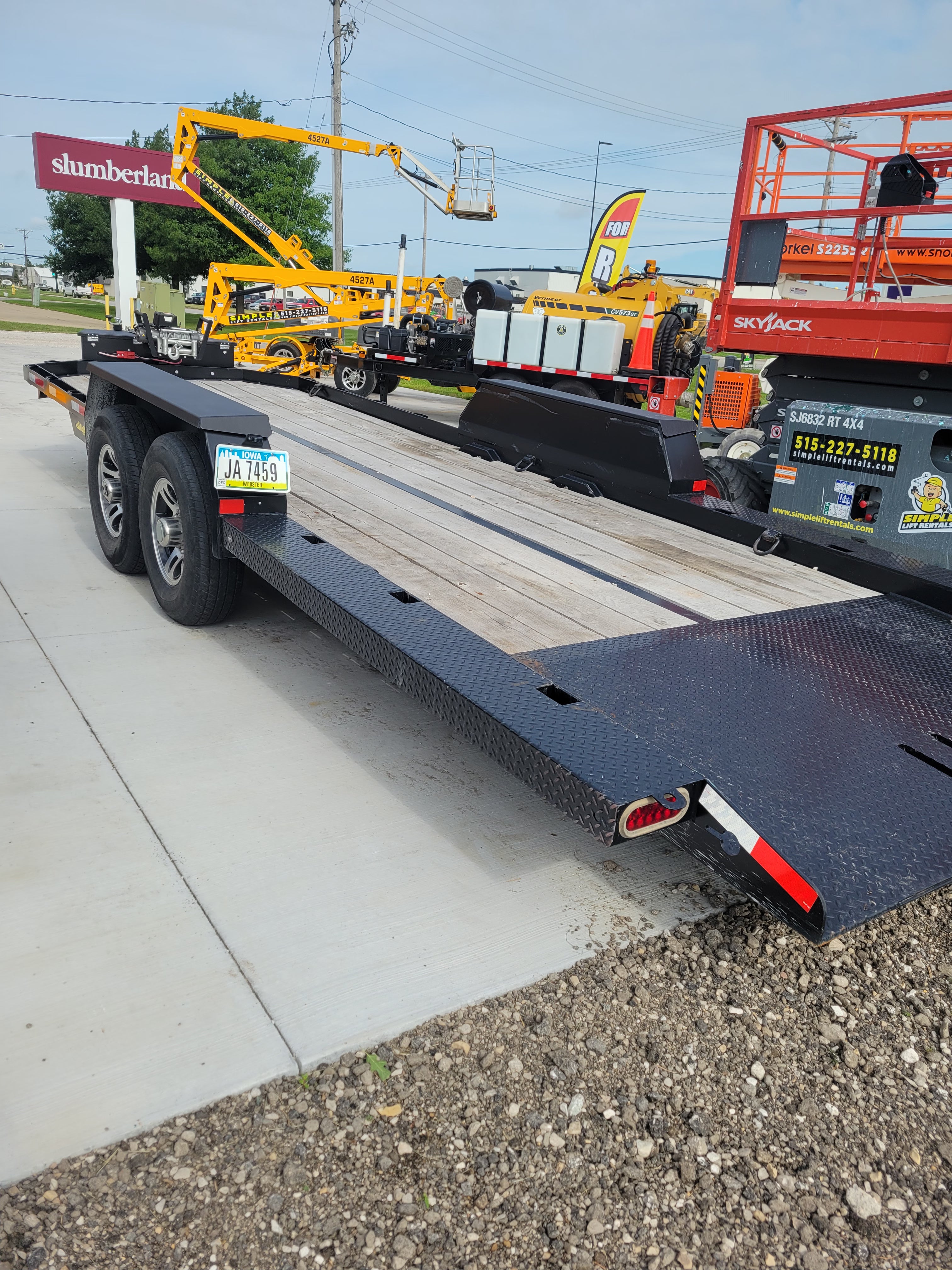

  • NO RAMP 23' TRAILER

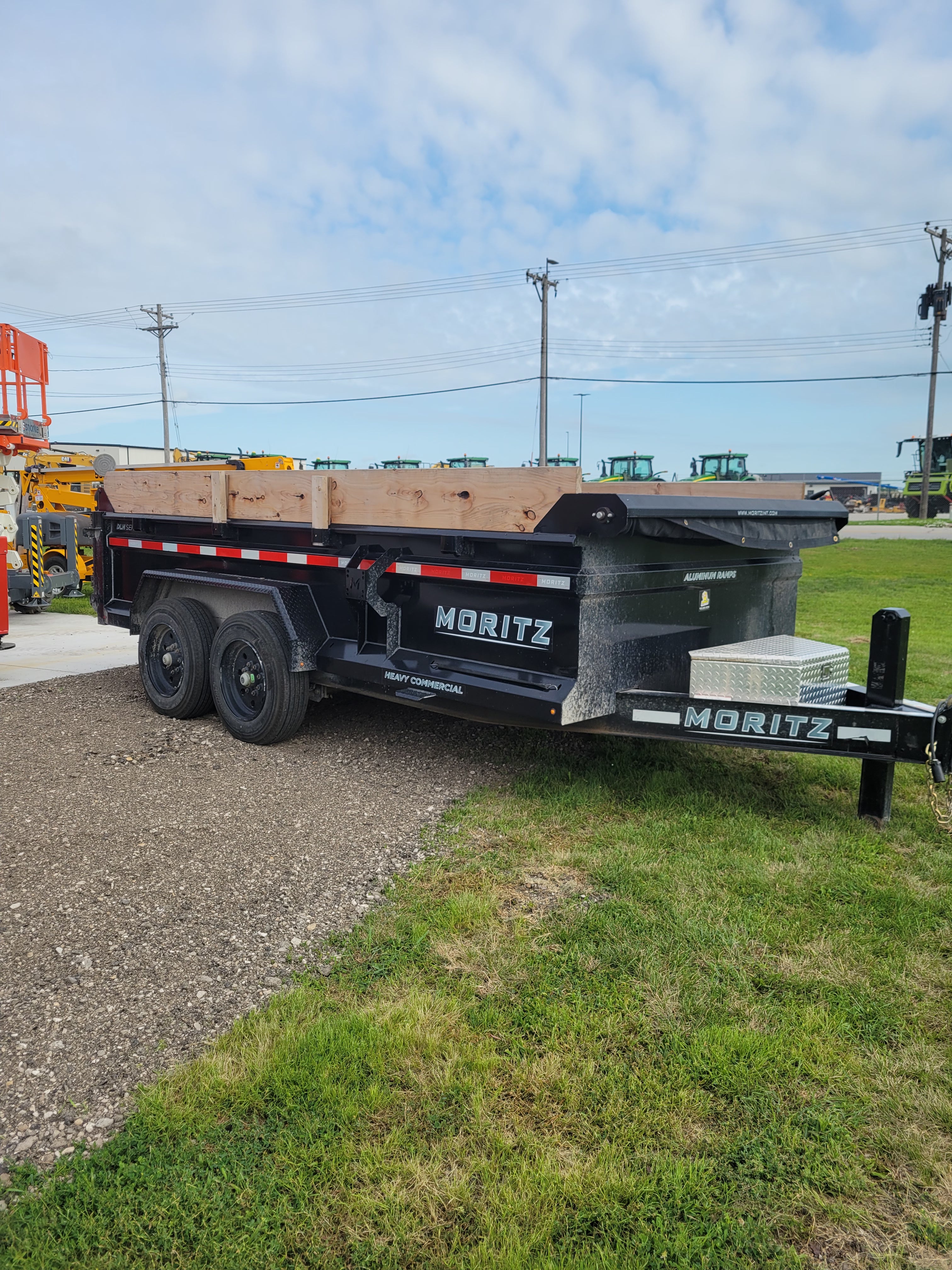

  • MORITZ DUMP TRAILER

OTHER

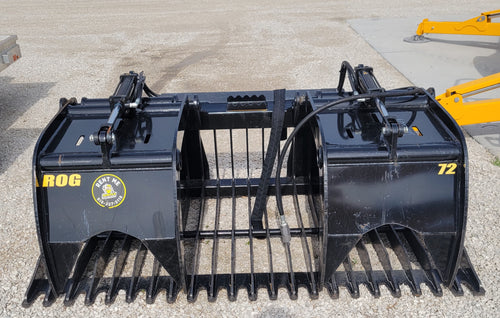

  • STINGER GRAPPLE ATTATCHMENT

    Category: Grapple, Bucket
    Year: 2022
    Manufacturer: Stinger
    Model: ROG 72
    Size: 72"
    Perfect attachment for sifting rock, grabbing brush, moving logs, debris cleanup, and much more.

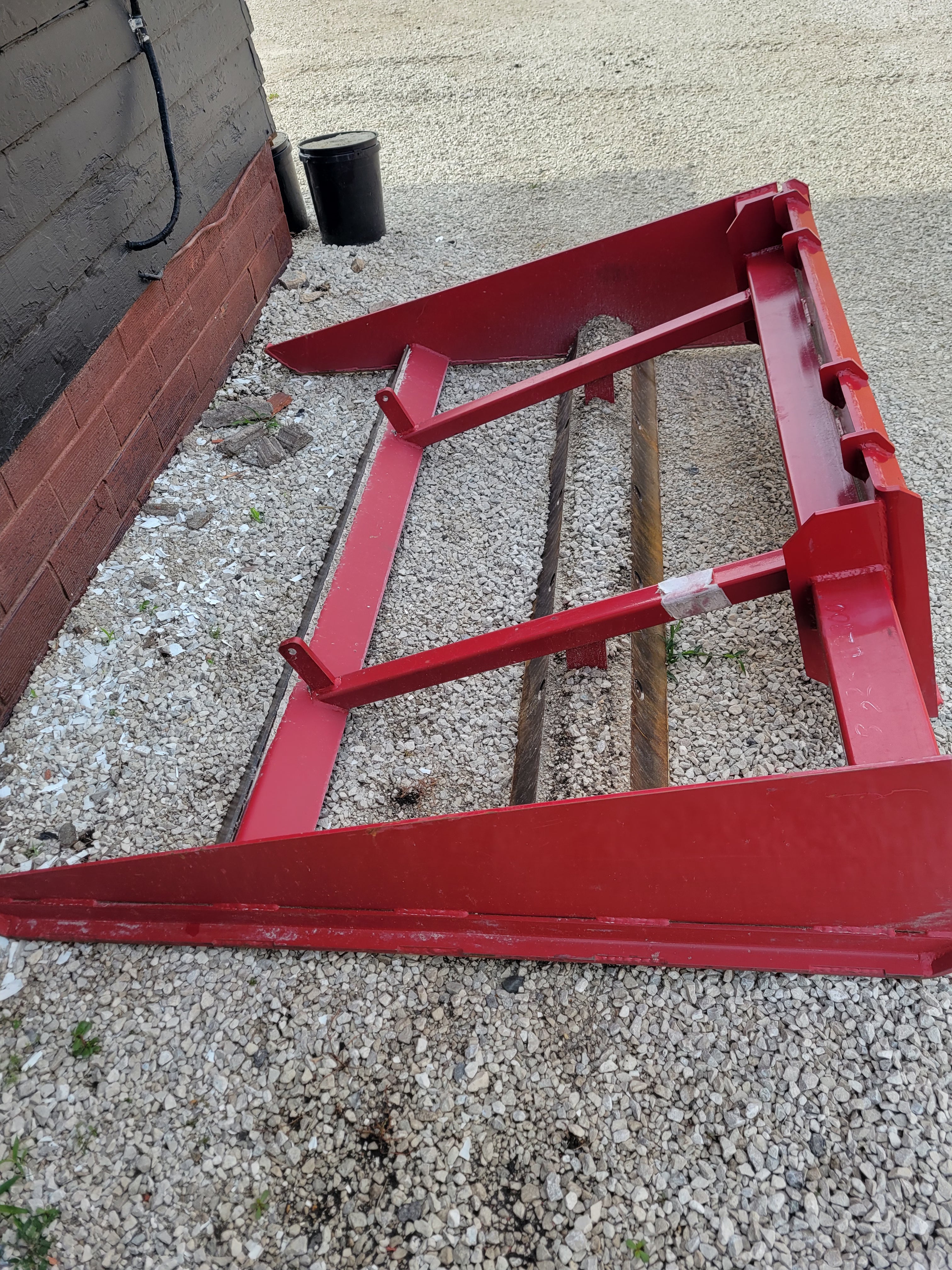

  • TITAN GRADER ATTATCHMENT

    Category: Grader
    Year: 2022
    Manufacturer: Titan
    Size: 72"
    Perfect attachment for road grating, spreading, leveling, road and parking lot maintenance, and more!

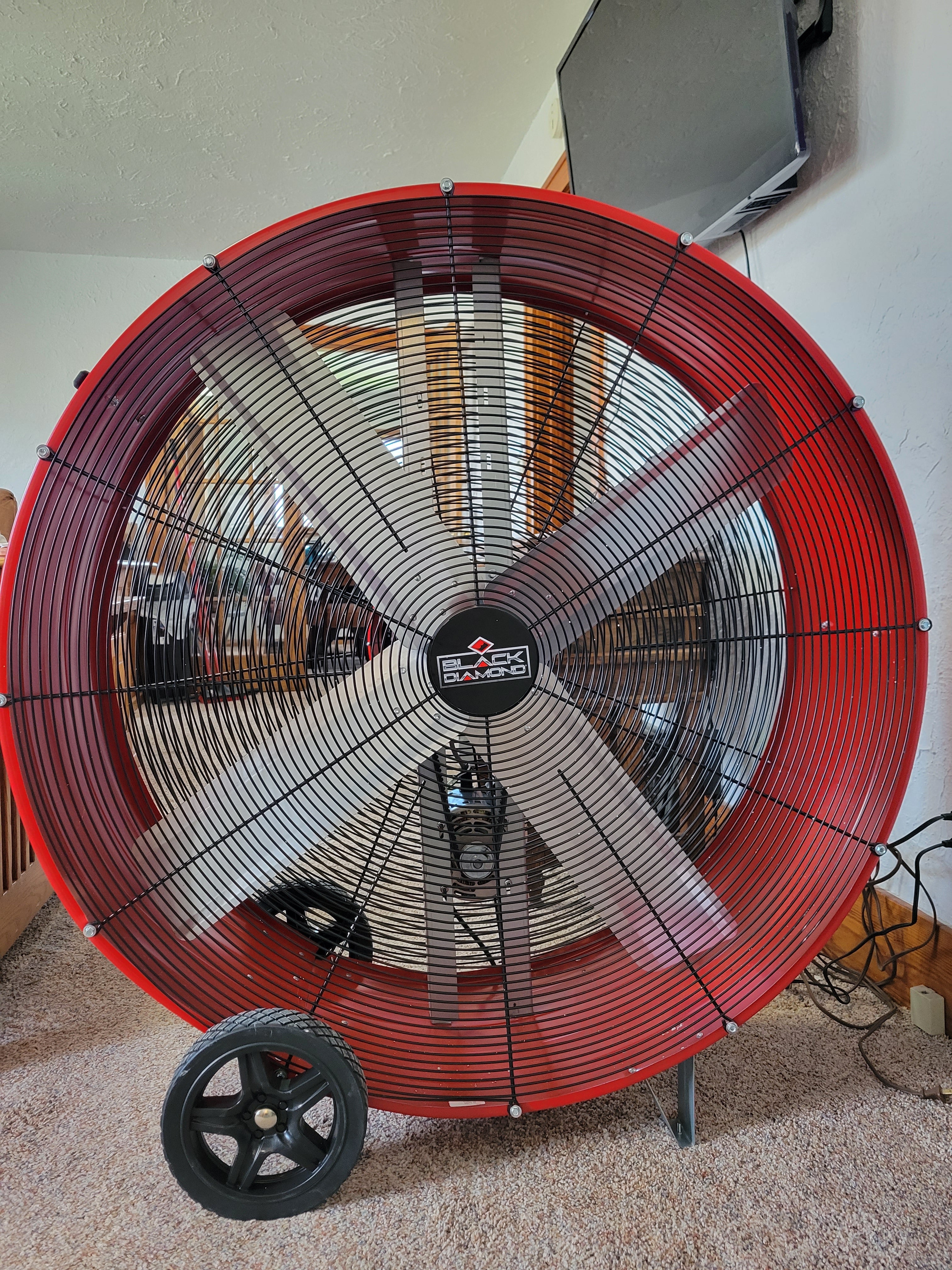

  • BLACK DIAMOND BELT DRIVE DRUM FANS

    Size: 42" & 24"
    Both offer 2-speed thermally protected PSC direct drive motor.
    The 24" fan drum tilts up to 180 degrees.
    Both fans can be used for drying out basements and keeping people and machines cooled off indoors.
    The 24" fan is useful for drying carpet when tilted 180 degrees.
    The 42" fan moves large volumes of hot air quickly.

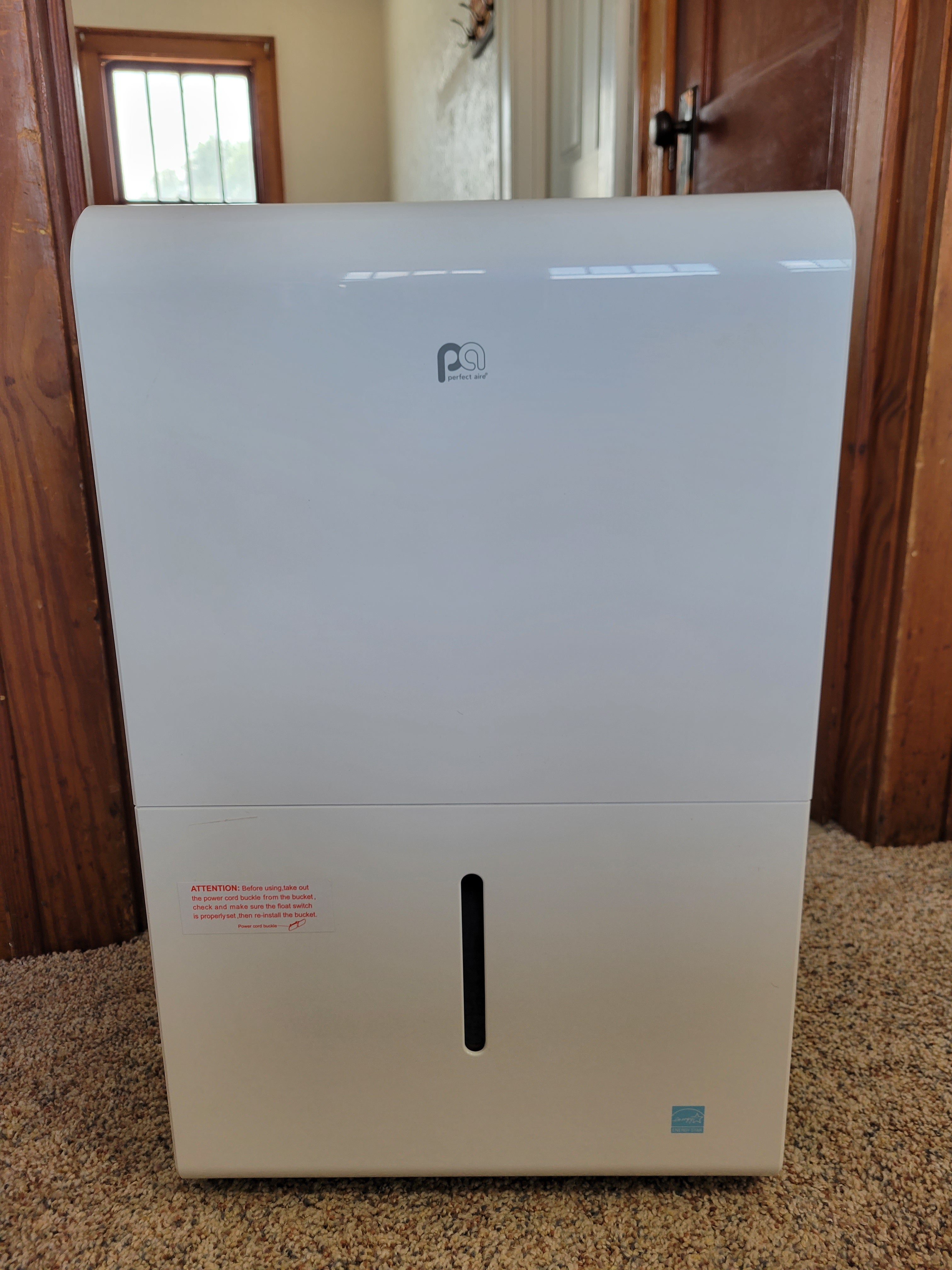

  • PERFECT AIRE ENERGY STAR DEHUMIDIFIER

    Size: 50 Pint
    The 50-pint Energy Star dehumidifier is powerful enough to remove humidity from large spaces up to 645 square feet.
